3D Laser Scanning Services

For architectural and industrial applications

3D Laser Scanning Service

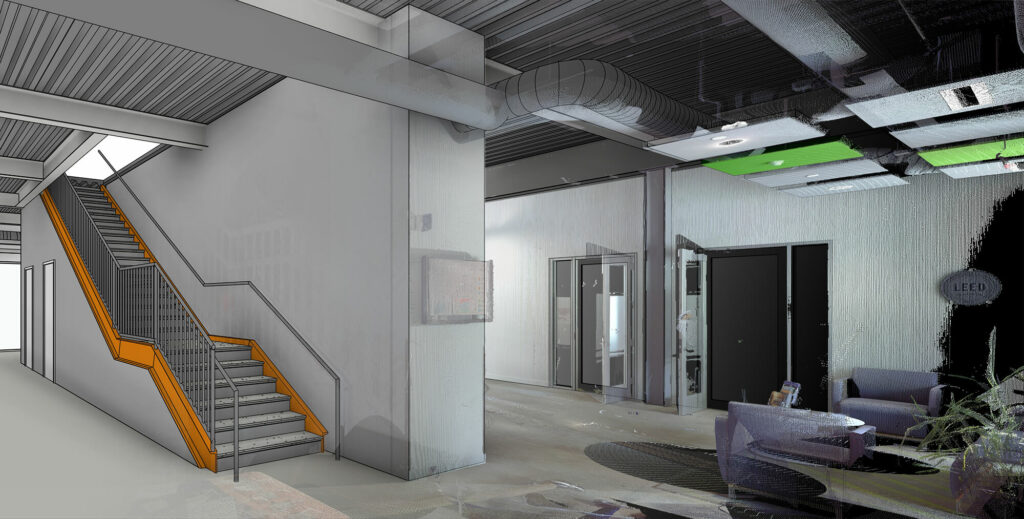

3d laser scanning-Building Measurements Services Houston

Reality IMT provides 3D laser scanning services nationwide to measure the dimensions and geometry of existing structures with high accuracy. Using state-of-the-art technology and tools, our team is able to digitize vertical and linear assets at high speed without disturbing the day-to-day function of the area of interest. Our 3D Building Scanning and Measurements cover multiple elements including architectural members, structural, and MEP, while Industrial 3D Laser Scanning captures piping details, PCV valves, tanks, pressure systems, furnaces, and more.

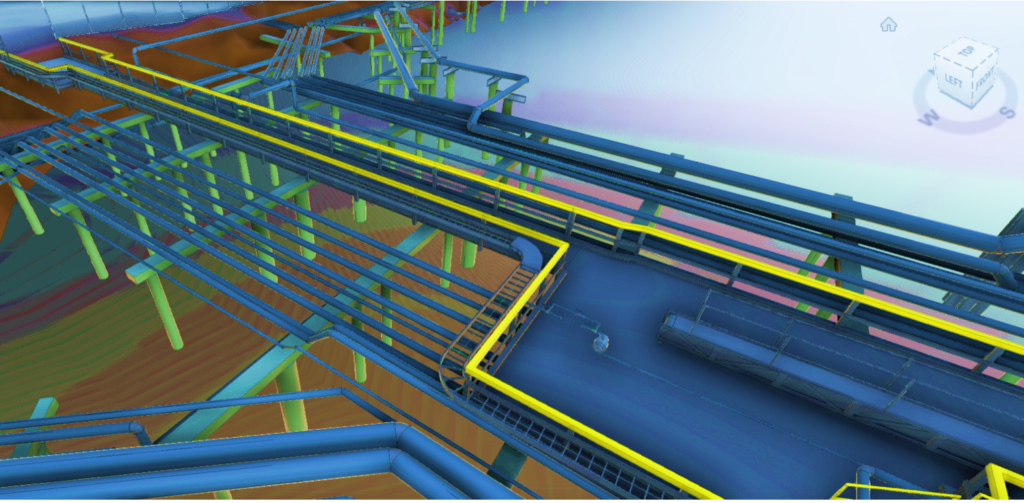

Pipe 3D Laser Scanning-Petrochemical P&ID

3D Laser Scanning Service For Architectural Modeling, Structural & MEP

Measuring existing buildings could be time-consuming and risky. Our 3D laser scanning service brings the entire site onto your desktop in the form of ready-to-use Revit, ArchiCAD, or DWG.

3D laser scanning is a precise method for documenting the geometry and dimensions of existing structures both, interior and exterior.

Engineers, Architects, and Facility Managers rely on us in delivering survey-grade measurements and as-is engineering analysis using our 3D laser scanning and CAD modeling. Sample deliverables include:

  • Floorplan and Roof Plan
  • Door & Window Schedules
  • Exterior Elevations
  • RCP
  • Fire Suppression System
  • FF&E
  • Electrical Panels & Electric Fixtures
  • HVAC System
  • Plumbing Plans & Plumbing Fixtures

We help you:

A. Minimize liability associated with field measurements.
B. Eliminate guessing layout, dimensions, and schedules.
C. Reduce cost, save time, and increase efficiency.


Industrial 3D Laser Scanning

Industrial 3d laser scanning Service as-built BIM Service

Pipe 3D Laser Scanning Service for Industrial Facilities

Measuring pipes and pipe racks are the first crucial step in retrofitting or upgrading industrial assets. Reality IMT has the expertise, credentials, and safety records to support your laser scanning needs. Mechanical Integrity & Reliability Engineers rely on us in delivering survey-grade measurements and as-is engineering analysis using our 3D laser scanning and Intelligent CAD modeling.

We help you:

A. Minimize non-essential site visits and reduce cost by 20%  by visiting sites digitally
B. Optimize third-party information for accurate job pricing
C. Reduce operational risk with fewer contractors on-site through

As-Builts can be delivered as a Pointcloud file, Navisworks, CaDWorx, DWG, or 3D imagery. Sample deliverables include:

  • Up-to-date P&ID
  • Measure Pressure Piping System
  • 3D Walkthrough, Measure, and Annotate
  • Smart Plant- Intelligent CAD models
  • Isometrics

Laser Scanning to BIM

What is BIM. Building Information Model From 3D Laser Scanning Services Houston

Pointcloud Conversion Services

Do you have large sets of pointcloud data that you need to convert to a user-friendly format?

Our pointcloud processing team can convert pointcloud data of any format to a ready-to-use BIM based on your requirements. We follow a rigorous QA/QC process to ensure accurate models are built while using the pointcloud as our benchmark.  As-Built CAD models can be generated using general arrangement drawings and engineering specifications and once the model is built, it could be used as the 1st input into your digital twin project, planning upgrades, design and maintenance, even budgeting.

We help you streamline as-built data processing, and CAD generation throughout the project life cycle.

Laser Scanning FAQs

1. What is 3D Laser Scanning and what is it used for?

3D laser scanning is a method used to measure dimensions and geometry of existing structures with high accuracy. The instrument used to measure dimensions is called a 3D laser scanner. 3D laser scanning is used to replicate real life objects needed to deliver an as-is or an as-built survey for further engineering analysis.

2. What are the benefits of a 3D Laser Scanning survey?

When compared to conventional measurements methods, a 3D laser scan survey provides millions and sometimes trillions of surface measurements in 3D, making it a much more detailed survey. See more applications here

3. How much does a 3D Laser Scan survey cost?

Pricing a 3D laser scan survey depends on the area being scanned and the level of details needed. The larger the area, the more scans will be needed to cover it. It also depends on how many walls or obstructions are in the vicinity, the more obstructions, the longer the survey will take and the more it will cost. Another factor is whether or not colored scans are needed. Colored scans take longer to capture and cost more but provide better visuals.

4. What 3D Scanner should I use to scan the exterior and interior of a structure?

Almost all professional grade laser scanners can operate indoor and outdoor. One important factor to consider when selecting a 3d laser scanner is range. If you need to scan tall structure, determine the maximum height you will be dealing with then multiple it by 3 to help you decide on the scanning range. Another factor to consider is accuracy or ranging error. This is a number provided by the manufacture showing the + and – tolerances.

5. Is 3D Laser Scanning suitable for a topographic surveys?

Yes, the amount of data measurements collected by a 3D laser scanner makes it an ideal solution for a topographic survey as it logs the x,y,z values of every inch in the surrounding area. A survey control point will be needed to tie in the laser data to a datum.

6. What software is used in 3D Laser Scanning?

Depending on the type of scanner used, each manufacturer has their own software that is compatible with the laser data (pointcloud). Pointcloud registration software include SceneCyclone and Recap. Once the pointcloud data is registered, it can be imported into many different software tools depending on the project needs.

7. What is the cost of a 3D Laser Scanner?

Professional grade 3D laser scanners range between $25K to $90K depending on accuracy, manufacturer, and use case.

8. Can I create a BIM using a 3D Laser Scanner?

Yes, the process for creating a building information model (BIM) using our 3D laser scanner includes: scanning the building, registering the pointcloud data, converting the pointcloud data into an RCP/RCS format, then importing RCP/RCS into Revit for modeling. It is important to point out that the scanner in itself does not provide a ready to use BIM. Our team will use an an architectural modeler to create Revit families and add any relevant information to the model manually.

Not sure which services are needed? Let’s talk

Sample 3D Laser Scanning Projects

Accurate and Fast Floor Plan Measurements using 3D Building Scanning Technology
3D Laser Scanning
3D Laser Scanning BIM-Pointcloud from 3d laser scanner is used to generate Building Information Model-BIM as-built.Case Study for a large area scan to BIM
